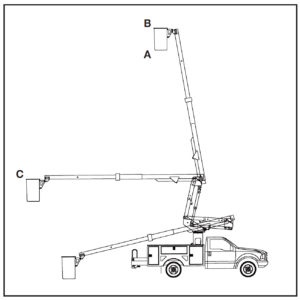

TEREX TL50 WORKING ENVELOPE
Bottom of Platform Height (A): 49.5ft (15.1m)
Working Height (B): 54.5ft (16.6m)
Horizontal Reach at 87º (C): 36.0ft (11.0m)
Horizontal Reach at 82º: 35.1ft (10.7m)
Horizontal Reach at 93º: 37.0ft (11.2m)
Lower Boom Articulation: 0 to 87º
Upper Boom Travel: -40-76º
Upper Boom Extension: 145in (368.3cm)
Platform Capacity: 600lbs (272.2kg)
